AKG C 567E1 Condenser Microphones
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Features | High Sensitivity |
| MPN | 567E1 |
| Unit Type | Unit |
| Suitable For | Live Performance |
| Model | C 567E1 |
| Diaphragm Size | Small |
| Transducer Type | Condenser |
| Maximum SPL | 132 DB |
| Form Factor | Condenser Microphone |
| Connectivity | XLR 3 Pin |
| Unit Quantity | n/a |
| Brand | AKG |

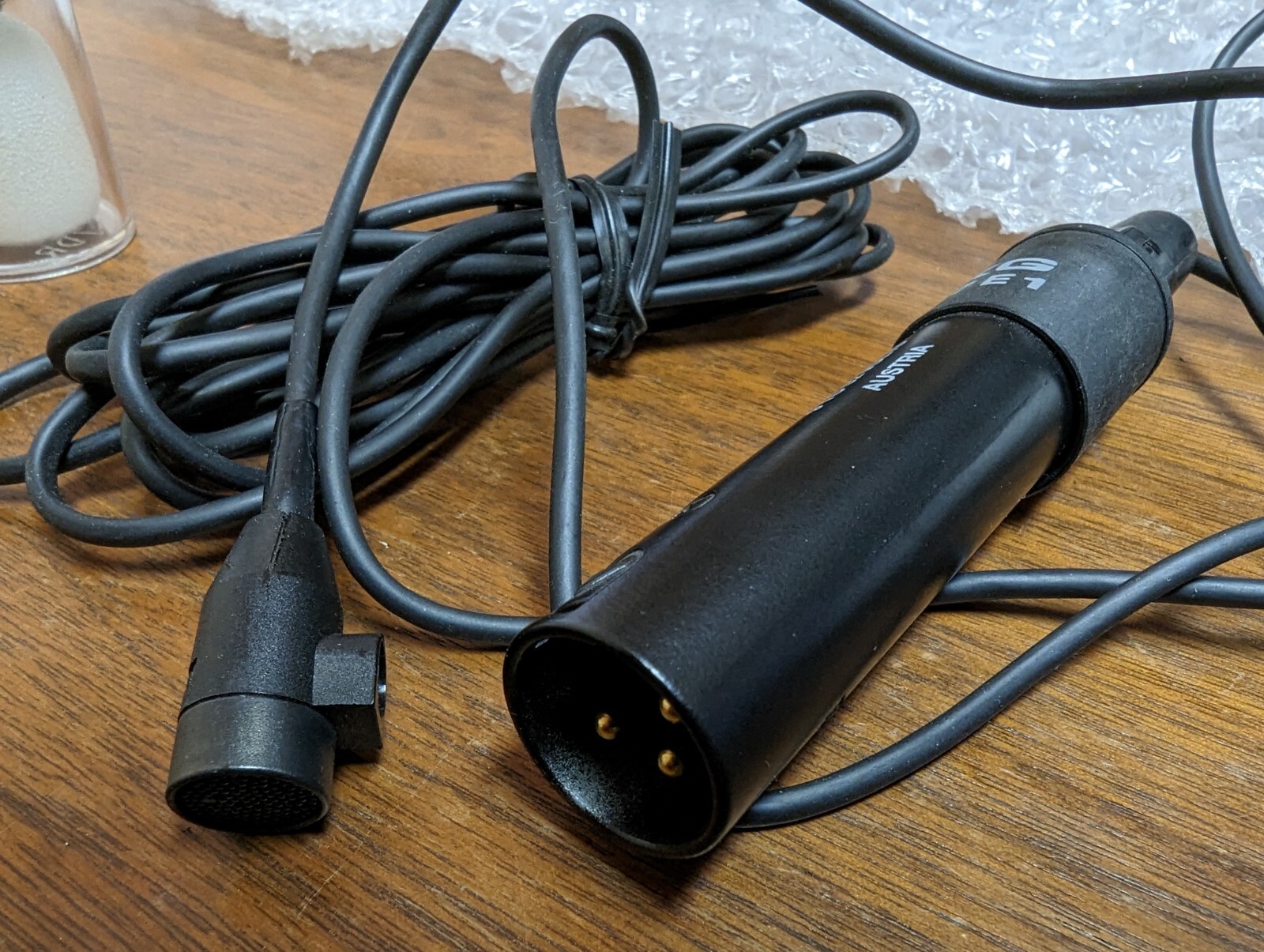

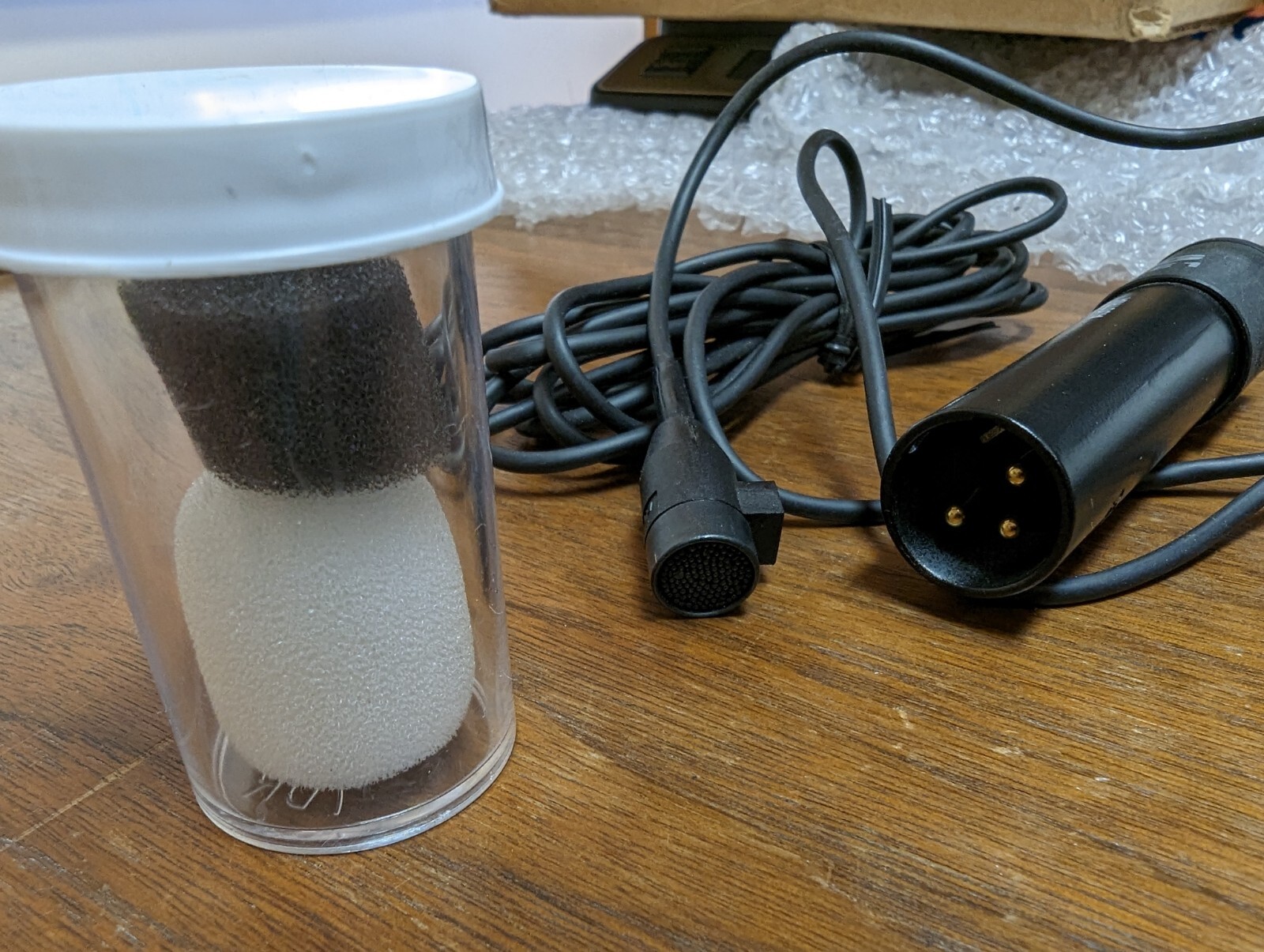

The AKG C567 E1 Microphone is an inconspicuous, matte black, omnidirectional miniature microphone. The first six we sell include a foam ball mic cover (white) Inconspicuous, matte black, omnidirectional miniature microphone. 3.5.m (I 1-ft. 8.-in.) connecting cord. Lapel or buttonhole microphone For voice pickup. Its wide frequency range makes it a very good instrument microphone, too. May be installed inside a guitar sound hole; also suited for violin and zither. To mic up a grand piano, tape two C 567's to the lid, which may then be closed For higher gain-before-feedback. Type. prepolarized condenser pressure microphone with 6-mm diaphragm Omnidirectional Sensitivity: 10 mV/Pa ยง -40 dBV re 1 V/Pa Frequency ulnae: 20 to 20.000 Hz t- 3 dB from published curve Impedance: s' 400.0 Recommended load impedance: > 2000 12 Mox. SPI. for 1% THD 1000 Hz: 80 Pa 132 dB SPL Equivalent noise level to DIN 45405 ICCIR 468.2): 34 dB Equivalent noise level to DIN 45412 IA weighted): 22 dB-A S/N ratio re I Pa (A weighted': 72 dB Power requirement: 9 to 52 V phantom power to DIN 45596 Current consumption: S 2 mA Environment temperature: -20' C to t60' C Rel. humidity: 95% (.,200 CI, 90% (+60" C) Connector: 3-pin XLR Size: dia.: 14 mm (Oh in.); length: 24 mm (0.9 in.)
